Big Little Server Models

ThinkCentre M600 Tiny 2016 Intel Celeron J3060

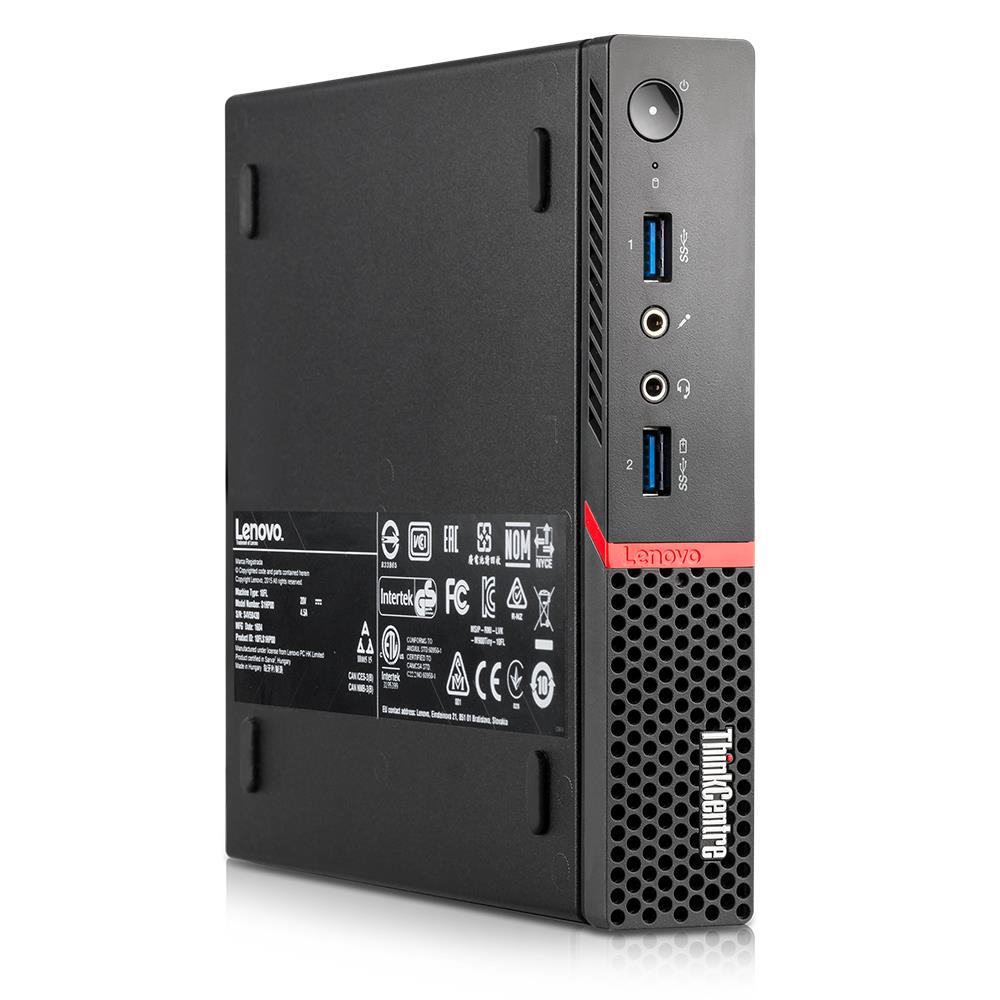

ThinkCentre M600 Tiny

CPU

Cores
2
Threads
2
Base freq
1.6 GHz
Max freq
2.48 GHz
Architecture
Braswell
Year
2016
Geekbench single
178
Geekbench multi
310
Process
14 nm
Cache
2 MB
Rating
1.5%
Rank
204th out of 206
TDP
6 W
Graphics
Unknown
Memory CPU memory maximum from Intel. Use the RAM card and factory max specs to verify platform-supported capacity.
DDR3L-1600 / 8 GB / 2 channels
PCIe
PCIe 2.0 / 4 lanes / 1x4/2x2/1x2 + 2x1/4x1

RAM

Platform max
8GB: 1x 8GB DDR3L-1600 SO-DIMM
Factory
  • 4GB: 1x 4GB DDR3L-1600
  • 2GB: 1x 2GB DDR3L-1600

Storage

Layout
1x SATA 2.5"
Factory
  • 500GB: 1x 500GB 2.5" HDD 7200rpm
  • 128GB: 1x 128GB SSD

I/O Ports

Rear
  • 2x USB-A 2.0
  • 2x USB-A 3.0
  • 2x DisplayPort
  • 1x Headphone
  • 1x Ethernet RJ-45
Front
  • 2x USB-A 3.0 (Always On; fast charge)
  • 1x Microphone (3.5mm)
  • 1x Headphone/microphone combo (3.5mm)
Optional I/O box External Lenovo Tiny I/O box attachment. These ports are add-on ports and may occupy one or more rear USB ports. Optional Lenovo Tiny I/O box mounted above the rear ports
  • 1x Serial
  • 2x USB-A 2.0
  • 2x USB-A 3.0
  • 2x USB-A 2.0
Optional rear
  • Optional port: 1x VGA / 1x DisplayPort / 1x Serial

Network

Integrated NIC
  • RTL8111GN: 1x 1GbE RJ-45 Ethernet
Compatible network adapters
  • Intel 8260: M.2 PCIe Wi-Fi 5 + BT 4.1
  • Qualcomm QCA6174: M.2 PCIe Wi-Fi 5 + BT 4.1
  • Qualcomm QCA9377: M.2 PCIe Wi-Fi 5 + BT 4.1
  • Realtek RTL8821AE: M.2 PCIe Wi-Fi 5 + BT 4.0
Factory network adapters
  • Intel 3165: M.2 PCIe Wi-Fi 5 + BT 4.0

Known configurations

Actual Lenovo model codes found with this CPU, grouped by the RAM, storage, and network options they shipped with.

Code RAM Storage Network
10GB
  • 1x 4GB
  • 1x 500GB 7200rpm 2.5"
  • RTL8111GN: 1x 1GbE RJ-45 Ethernet
  • Intel 3165 M.2 PCIe Wi-Fi 5 + BT 4.0
10GB
  • 1x 4GB
  • 1x 128GB SSD
  • RTL8111GN: 1x 1GbE RJ-45 Ethernet
  • Intel 3165 M.2 PCIe Wi-Fi 5 + BT 4.0
10GB
  • 1x 2GB
  • 1x 500GB 7200rpm 2.5"
  • RTL8111GN: 1x 1GbE RJ-45 Ethernet
  • Intel 3165 M.2 PCIe Wi-Fi 5 + BT 4.0
