Big Little Server Models

ThinkCentre M700 Tiny 2016 Intel Celeron G3900T

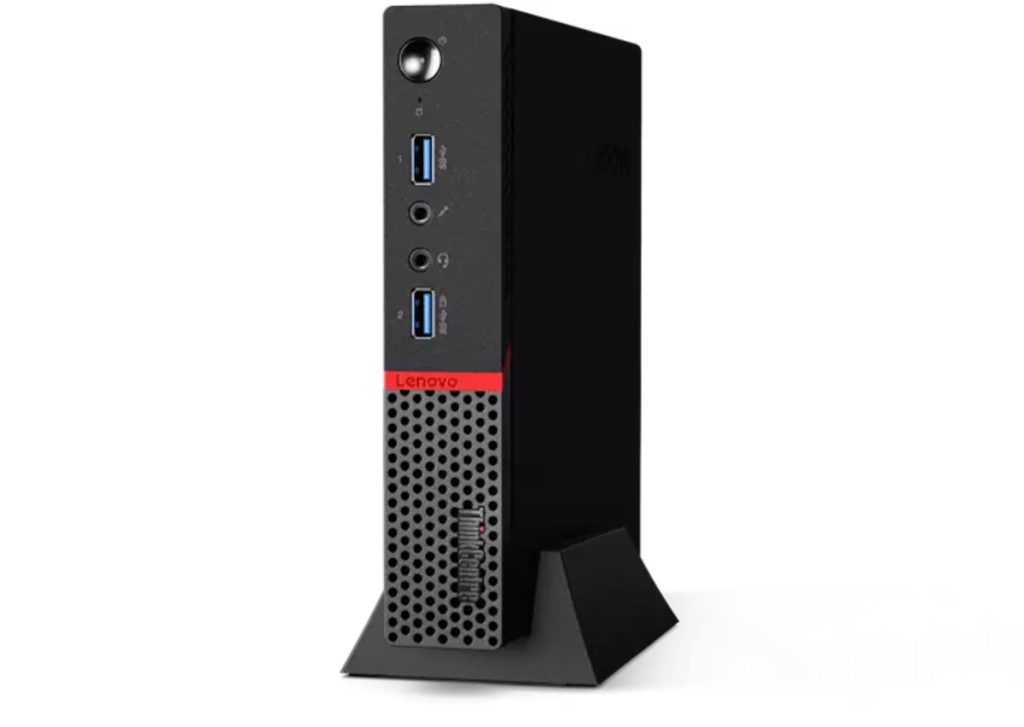

ThinkCentre M700 Tiny

CPU

Cores
2
Threads
2
Base freq
2.6 GHz
Max freq
Unknown
Architecture
Skylake-S
Year
2015
Geekbench single
553
Geekbench multi
972
Process
14 nm
Cache
2 MB
Rating
9.2%
Rank
188th out of 206
TDP
35 W
Graphics
Intel® HD Graphics 510
Memory CPU memory maximum from Intel. Use the RAM card and factory max specs to verify platform-supported capacity.
DDR4-1866/2133, DDR3L-1333/1600 @ 1.35V / 64 GB / 2 channels
PCIe
PCIe 3.0 / 16 lanes / Up to 1x16, 2x8, 1x8+2x4

RAM

Platform max
32GB: 2x 16GB DDR4-2133 SO-DIMM
Factory
  • 4GB: 1x 4GB DDR4-2133

Storage

Layout
1x M.2 SSD
Factory
  • 16GB: 1x 16GB M.2 SSD

I/O Ports

Rear
  • 4x USB-A 3.0
  • 2x DisplayPort
  • 1x Headphone
  • 1x Ethernet RJ-45
Front
  • 2x USB-A 3.0 (Always On; fast charge)
  • 1x Microphone (3.5mm)
  • 1x Headphone/microphone combo (3.5mm)
Optional I/O box External Lenovo Tiny I/O box attachment. These ports are add-on ports and may occupy one or more rear USB ports. Optional Lenovo Tiny I/O box mounted above the rear ports
  • 1x Serial
  • 2x USB-A 2.0
  • 2x USB-A 3.0
  • 2x USB-A 2.0
Optional rear
  • Optional port: 1x VGA / 1x DisplayPort / 1x HDMI / 1x Serial

Network

Integrated NIC
  • I219-LV: 1x 1GbE RJ-45 Ethernet
Compatible network adapters
  • Intel 3165: M.2 PCIe Wi-Fi 5 + BT 4.0
  • Intel 8260: M.2 PCIe Wi-Fi 5 + BT 4.1
  • Qualcomm QCA6174: M.2 PCIe Wi-Fi 5 + BT 4.1
  • Qualcomm QCA9377: M.2 PCIe Wi-Fi 5 + BT 4.1
  • Realtek RTL8821AE: M.2 PCIe Wi-Fi 5 + BT 4.0

Known configurations

Actual Lenovo model codes found with this CPU, grouped by the RAM, storage, and network options they shipped with.

Code RAM Storage Network
10JQ
  • 1x 4GB
  • 1x 16GB SSD M.2
  • I219-LV: 1x 1GbE RJ-45 Ethernet
10JS
  • 1x 4GB
  • 1x 16GB SSD M.2
  • I219-LV: 1x 1GbE RJ-45 Ethernet
