Big Little Server Models

ThinkCentre M70q Gen 2 2021 Intel Celeron G5905T

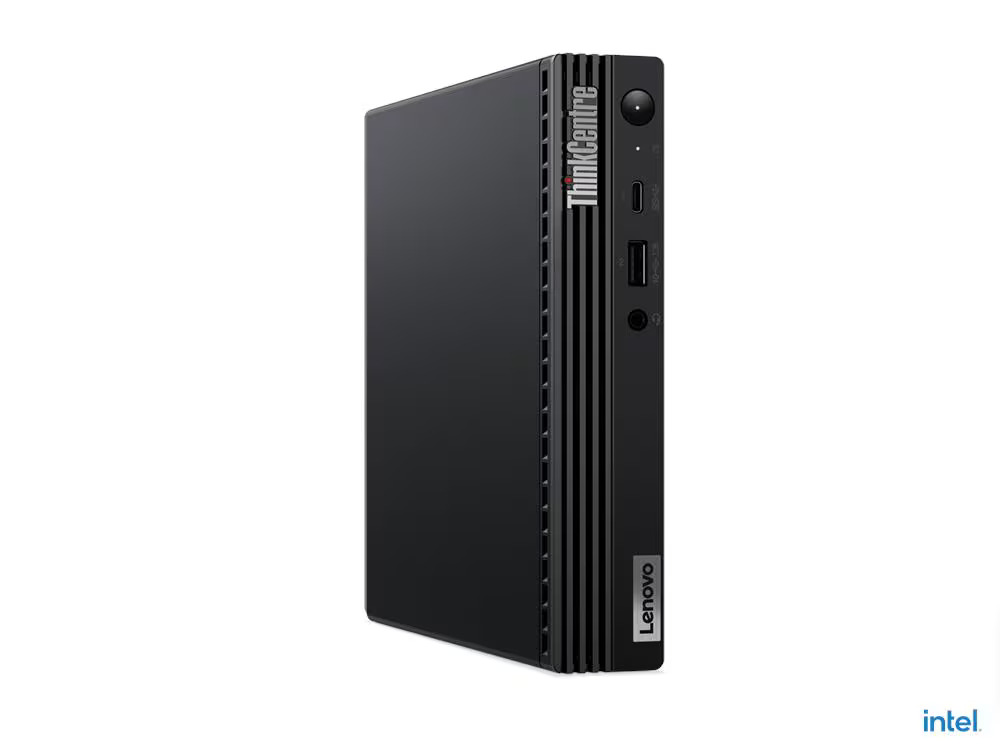

ThinkCentre M70q Gen 2

CPU

Cores
2
Threads
2
Base freq
3.3 GHz
Max freq
Unknown
Architecture
Comet Lake-S
Year
2020
Geekbench single
679
Geekbench multi
1,106
Process
14 nm
Cache
4 MB
Rating
11.7%
Rank
183rd out of 206
TDP
35 W
Graphics
IntelĀ® UHD Graphics 610
Memory CPU memory maximum from Intel. Use the RAM card and factory max specs to verify platform-supported capacity.
DDR4-2666 / 128 GB / 2 channels
PCIe
PCIe 3.0 / 16 lanes / Up to 1x16, 2x8, 1x8+2x4

RAM

Platform max
64GB: 2x 32GB DDR4-2666 SO-DIMM
Factory
  • 4GB: 1x 4GB DDR4-2666

Storage

Layout
1x M.2 NVMe + 1x SATA 2.5"
Factory
  • 256GB: 1x 256GB M.2 NVMe SSD
  • 128GB: 1x 128GB M.2 NVMe SSD

I/O Ports

Rear
  • 1x HDMI
  • 1x DisplayPort
  • 2x USB-A 3.2 Gen 1
  • 2x USB-A 3.2 Gen 2
  • 1x Ethernet RJ-45
Front
  • 1x USB-A 3.2 Gen 2 (Always On; fast charge)
  • 1x USB-C 3.2 Gen 1
  • 1x Headphone/microphone combo (3.5mm)
Optional rear
  • Optional port 1: 1x VGA / 1x DisplayPort / 1x HDMI / 1x Serial / 1x USB-C 2.0 (DisplayPort Alt Mode) / Optional port 2: 1x Serial / 2x USB-A 3.2 Gen 1 (shared bandwidth) / 2x DisplayPort

Network

Integrated NIC
  • I219-V: 1x 1GbE RJ-45 Ethernet
Compatible network adapters
  • Intel 9560: M.2 PCIe Wi-Fi 5 + BT 5.1
  • Intel AX201: M.2 PCIe Wi-Fi 6 + BT 5.1
Factory network adapters
  • Realtek RTL8822CE: M.2 PCIe Wi-Fi 5 + BT 5.0

Known configurations

Actual Lenovo model codes found with this CPU, grouped by the RAM, storage, and network options they shipped with.

Code RAM Storage Network
11N0
  • 1x 4GB SO-DIMM DDR4-2666
  • 1x 256GB SSD M.2 2280 PCIe NVMe
  • I219-V: 1x 1GbE RJ-45 Ethernet
  • Realtek RTL8822CE M.2 PCIe Wi-Fi 5 + BT 5.0
11MY
  • 1x 4GB SO-DIMM DDR4-2666
  • 1x 128GB SSD M.2 2242 PCIe NVMe
  • I219-V: 1x 1GbE RJ-45 Ethernet
  • Realtek RTL8822CE M.2 PCIe Wi-Fi 5 + BT 5.0
11N0
  • 1x 4GB SO-DIMM DDR4-2666
  • 1x 128GB SSD M.2 2242 PCIe NVMe
  • I219-V: 1x 1GbE RJ-45 Ethernet
  • Realtek RTL8822CE M.2 PCIe Wi-Fi 5 + BT 5.0
