ThinkCentre M70q Gen 3 2022 Intel Celeron G6900T

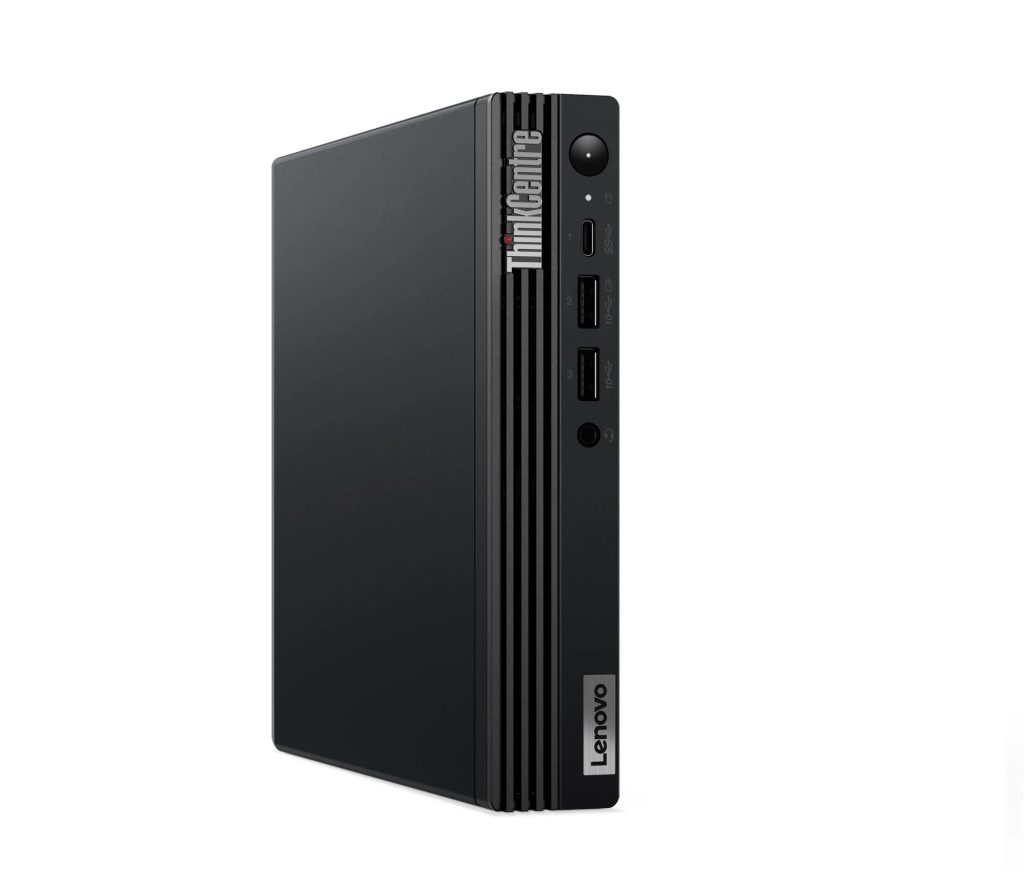

ThinkCentre M70q Gen 3

CPU

Cores
2
Threads
2
Base freq
2.8 GHz
Max freq
Unknown
Architecture
Alder Lake-S
Year
2022
Geekbench single
1,424
Geekbench multi
2,450
Process
Intel 7
Cache
4 MB
Rating
25.7%
Rank
154th out of 206
TDP
35 W
Graphics
Intel® UHD Graphics 710
Memory CPU memory maximum from Intel. Use the RAM card and factory max specs to verify platform-supported capacity.
Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s / 128 GB / 2 channels
PCIe
PCIe 5.0 and 4.0 / 20 lanes / Up to 1x16+4, 2x8+4

RAM

Platform max
64GB: 2x 32GB DDR4-3200 SO-DIMM
Factory
  • 8GB: 2x 4GB DDR4-3200
  • 8GB: 1x 8GB DDR4-3200
  • 4GB: 1x 4GB DDR4-3200

Storage

Layout
1x M.2 NVMe + 1x SATA 2.5"
Factory
  • 500GB: 1x 500GB 2.5" HDD 7200rpm
  • 256GB: 1x 256GB M.2 NVMe SSD
  • 128GB: 1x 128GB M.2 NVMe SSD

I/O Ports

Rear
  • 1x HDMI 2.1 TMDS
  • 1x DisplayPort 1.4
  • 1x USB-A 2.0
  • 1x USB-A 3.2 Gen 1
  • 2x USB-A 3.2 Gen 2
  • 1x Ethernet RJ-45
Front
  • 1x USB-A 3.2 Gen 2
  • 1x USB-A 3.2 Gen 2 (Always On; charging)
  • 1x USB-C 3.2 Gen 1 (charging; data transfer)
  • 1x Headphone/microphone combo (3.5mm)
Optional rear
  • Punch out port 1: 1x VGA / 1x DisplayPort / 1x HDMI / 1x Serial / 1x USB-C 2.0 (DisplayPort Alt Mode) / Punch out port 2: 1x VGA / 1x DisplayPort / 1x HDMI / 1x Serial / 1x Ethernet RJ-45

Network

Integrated NIC
  • I219-LM: 1x 1GbE RJ-45 Ethernet
Compatible network adapters
  • RTL8125BGS: PCIe 1x 2.5GbE RJ-45 Ethernet
  • Intel 9560: M.2 PCIe Wi-Fi 5 + BT 5.1
  • Realtek RTL8852BE: M.2 PCIe Wi-Fi 6 + BT 5.1
Factory network adapters
  • Intel AX201: M.2 PCIe Wi-Fi 6 + BT 5.2
  • Realtek RTL8822CE: M.2 PCIe Wi-Fi 5 + BT 5.0

Known configurations

Actual Lenovo model codes found with this CPU, grouped by the RAM, storage, and network options they shipped with.

Code RAM Storage Network
11T3
  • 1x 8GB SO-DIMM DDR4-3200
  • 1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe
  • I219-LM: 1x 1GbE RJ-45 Ethernet
  • Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.2
11T4
  • 2x 4GB SO-DIMM DDR4-3200
  • 1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe
  • I219-LM: 1x 1GbE RJ-45 Ethernet
11T4
  • 1x 4GB SO-DIMM DDR4-3200
  • 1x 500GB HDD 7200rpm 2.5"
  • I219-LM: 1x 1GbE RJ-45 Ethernet
11T3
  • 1x 4GB SO-DIMM DDR4-3200
  • 1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe
  • I219-LM: 1x 1GbE RJ-45 Ethernet
  • Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.2
11T3
  • 1x 4GB SO-DIMM DDR4-3200
  • 1x 128GB SSD M.2 2242 PCIe 3.0x2 NVMe
  • I219-LM: 1x 1GbE RJ-45 Ethernet
  • Realtek RTL8822CE M.2 PCIe Wi-Fi 5 + BT 5.0
