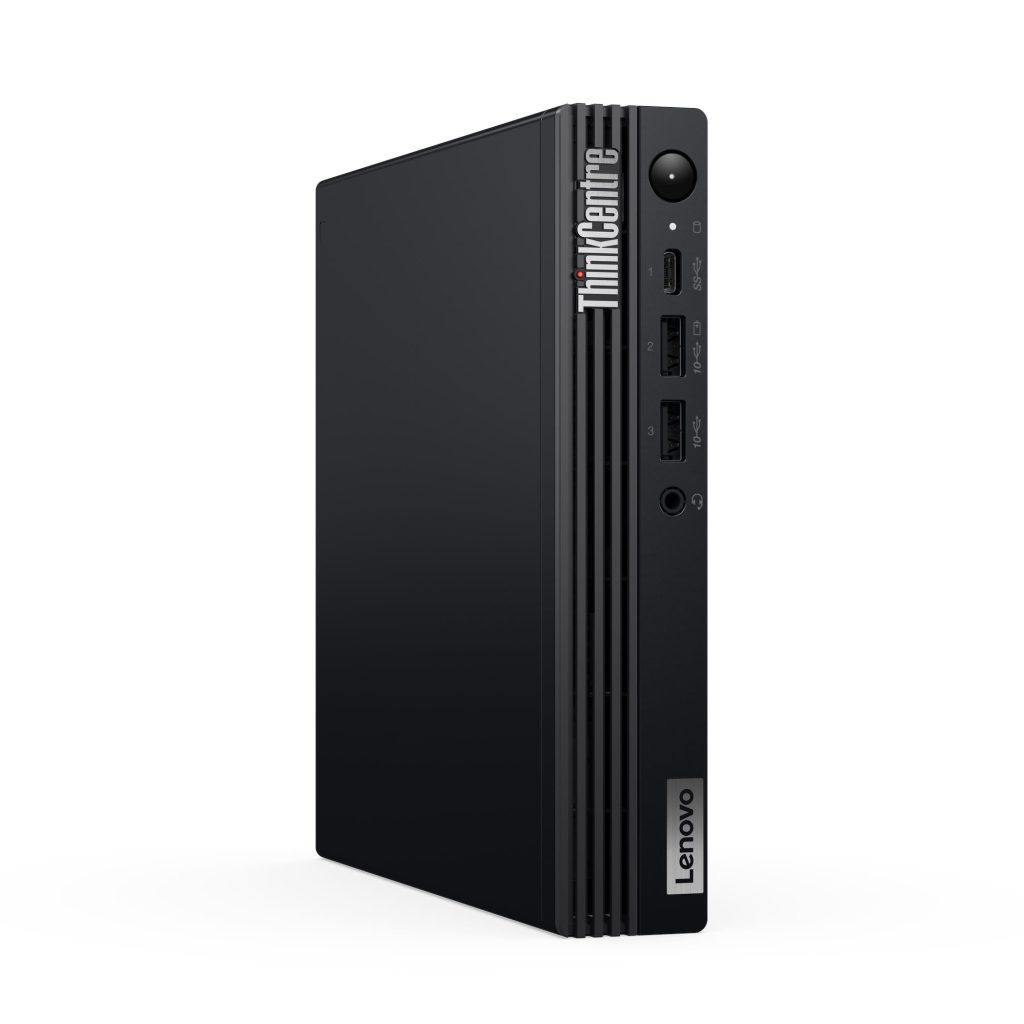

ThinkCentre M70q Gen 5 2024 Intel 300T

CPU

Cores: 2
Threads: 4
Base freq: 3.4 GHz
Max freq: Unknown
Architecture: Raptor Lake-S Refresh
Year: 2024
Geekbench single: 1,629
Geekbench multi: 2,754
Process: Intel 7
Cache: 6 MB
Rating: 27.7%
Rank: 150th out of 206
TDP: 35 W
Graphics: Intel® UHD Graphics 710
Memory CPU memory maximum from Intel. Use the RAM card and factory max specs to verify platform-supported capacity.: Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s / 192 GB / 2 channels
PCIe: PCIe 5.0 and 4.0 / 20 lanes / Up to 1x16+4, 2x8+4

Rear: 1x USB-A 2.0 (Smart Power On)

1x USB-A 3.2 Gen 1

2x USB-A 3.2 Gen 2

1x HDMI 2.1 TMDS

1x DisplayPort 1.4a (HBR2; DSC)

1x Ethernet RJ-45
Front: 1x USB-C 3.2 Gen 1 (charging)

1x USB-A 3.2 Gen 2 (Always On; charging)

1x USB-A 3.2 Gen 2

1x Headphone/microphone combo (3.5mm)
Optional rear: Punch out port 1: 1x VGA / 1x DisplayPort / 1x HDMI / 1x Serial / 1x USB-C 2.0 (DisplayPort Alt Mode; power delivery; PD-in 100W) / Punch out port 2: 1x VGA / 1x DisplayPort / 1x HDMI / 1x Serial / 1x Ethernet RJ-45

Integrated NIC: 1x 1GbE RJ-45 Ethernet
Compatible network adapters: RTL8125BGS: PCIe 1x 2.5GbE RJ-45 Ethernet

Intel AX201: M.2 PCIe Wi-Fi 6 + BT 5.2
Factory network adapters: Intel AX211: M.2 PCIe Wi-Fi 6E + BT 5.3 + vPro

Realtek RTL8852BE: M.2 PCIe Wi-Fi 6 + BT 5.2

Actual Lenovo model codes found with this CPU, grouped by the RAM, storage, and network options they shipped with.

Code	RAM	Storage	Network
12TD	1x 16GB SODIMM DDR5-4800	1x 512GB SSD M.2 2280 PCIe 4.0x4 NVMe	1x 1GbE RJ-45 Ethernet Intel AX211 M.2 PCIe Wi-Fi 6E + BT 5.3 + vPro
12TE	1x 16GB SODIMM DDR5-4800	1x 512GB SSD M.2 2280 PCIe 4.0x4 NVMe	1x 1GbE RJ-45 Ethernet Realtek RTL8852BE M.2 PCIe Wi-Fi 6 + BT 5.2
12TD	1x 8GB SODIMM DDR5-4800	1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe	1x 1GbE RJ-45 Ethernet Intel AX211 M.2 PCIe Wi-Fi 6E + BT 5.3 + vPro
