Big Little Server Models

ThinkCentre M70q Gen 6 2026 Intel Ultra 7 265

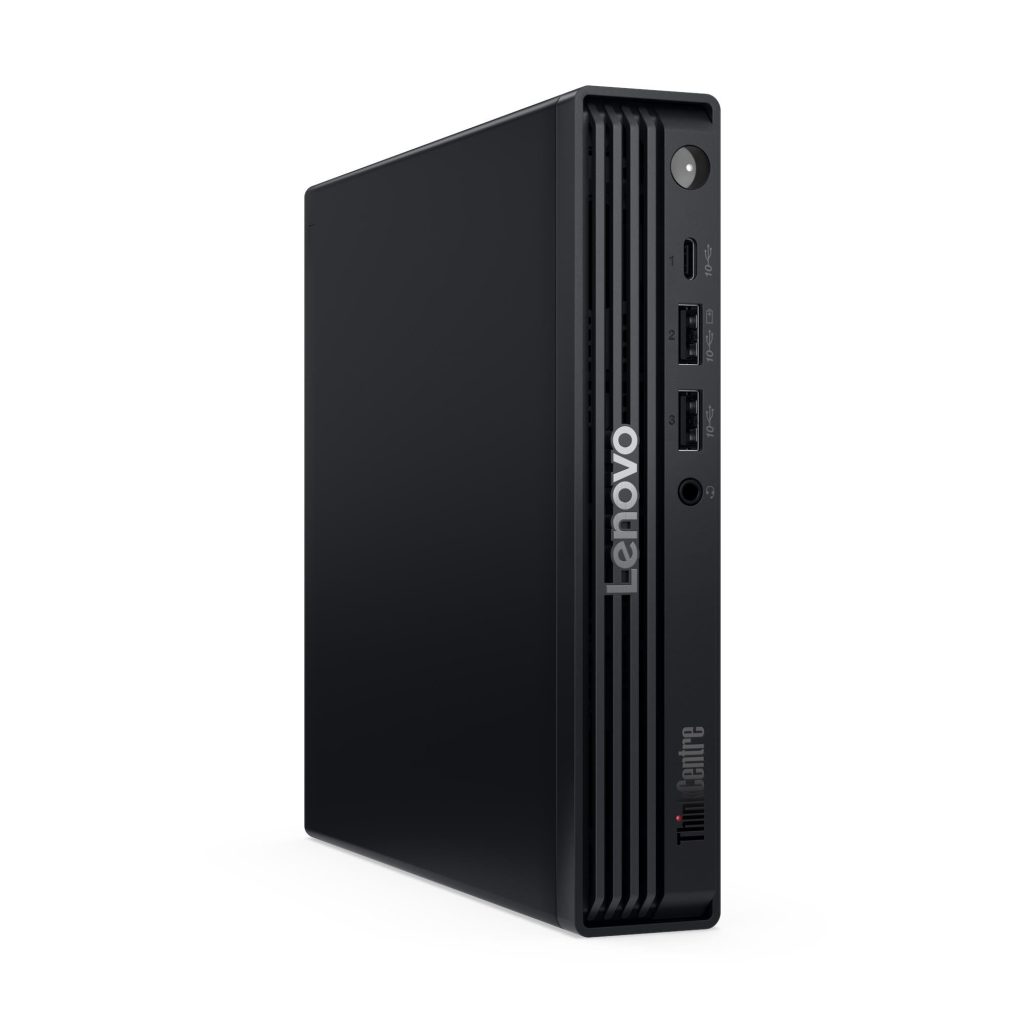

ThinkCentre M70q Gen 6

CPU

Cores
20
Threads
20
Base freq
1.8 GHz
Max freq
5.3 GHz
Architecture
Arrow Lake
Year
2025
Geekbench single
2,323
Geekbench multi
16,326
Process
Unknown
Cache
30 MB
Rating
99%
Rank
3rd out of 206
TDP
65 W
Graphics
IntelĀ® Graphics
Memory CPU memory maximum from Intel. Use the RAM card and factory max specs to verify platform-supported capacity.
Up to DDR5 6400 MT/s / 256 GB / 2 channels
PCIe
PCIe 5.0 and 4.0 / 24 lanes / Up to 1x16+2x4, 2x8+2x4, 1x8+4x4

RAM

Platform max
64GB: 2x 32GB DDR5-5600 SO-DIMM
Factory
  • 16GB: 1x 16GB DDR5-5600

Storage

Layout
2x M.2 NVMe
Factory
  • 512GB: 1x 512GB M.2 NVMe SSD

I/O Ports

Rear
  • 2x USB-A 3.2 Gen 2
  • 2x USB-A 3.2 Gen 1 (Smart Power On; one port only)
  • 1x HDMI 2.1 TMDS
  • 1x DisplayPort 1.4a (HBR2)
  • 1x Ethernet RJ-45
Front
  • 1x USB-C 3.2 Gen 2 (data transfer; data only)
  • 2x USB-A 3.2 Gen 2 (Always On; charging; one port only)
  • 1x Headphone/microphone combo (3.5mm)
Optional rear
  • Punch out port 1: 1x VGA / 1x DisplayPort 1.4a (HBR2) / 1x HDMI 2.1 TMDS / 1x HDMI 2.1 FRL / 1x Serial / 1x Ethernet RJ-45 / 1x USB-C 3.2 Gen 2 (DisplayPort Alt Mode; power delivery; PD-in 100W; HBR2) / Punch out port 2: 1x VGA / 1x DisplayPort 1.4a (HBR2) / 1x HDMI 2.1 TMDS / 1x HDMI 2.1 FRL / 1x Serial / 1x Ethernet RJ-45 / 1x USB-C Thunderbolt 4 / 2x USB-A 3.2 Gen 2

Network

Integrated NIC
  • I219-LM: 1x 1GbE RJ-45 Ethernet
Compatible network adapters
  • RTL8125BGS: PCIe 1x 2.5GbE RJ-45 Ethernet
  • Intel AX211: M.2 PCIe Wi-Fi 6 + BT 5.3 + vPro
  • Realtek RTL8852CE: M.2 PCIe Wi-Fi 6 + BT 5.3
  • Realtek RTL8922AE: Wi-Fi 7 + BT 5.4
Factory network adapters
  • Intel AX203: M.2 PCIe Wi-Fi 6 + BT 5.2

Known configurations

Actual Lenovo model codes found with this CPU, grouped by the RAM, storage, and network options they shipped with.

Code RAM Storage Network
13A4
  • 1x 16GB SODIMM DDR5-5600
  • 1x 512GB SSD M.2 2280 PCIe 4.0x4 NVMe
  • I219-LM: 1x 1GbE RJ-45 Ethernet
  • Intel AX203 M.2 PCIe Wi-Fi 6 + BT 5.2
