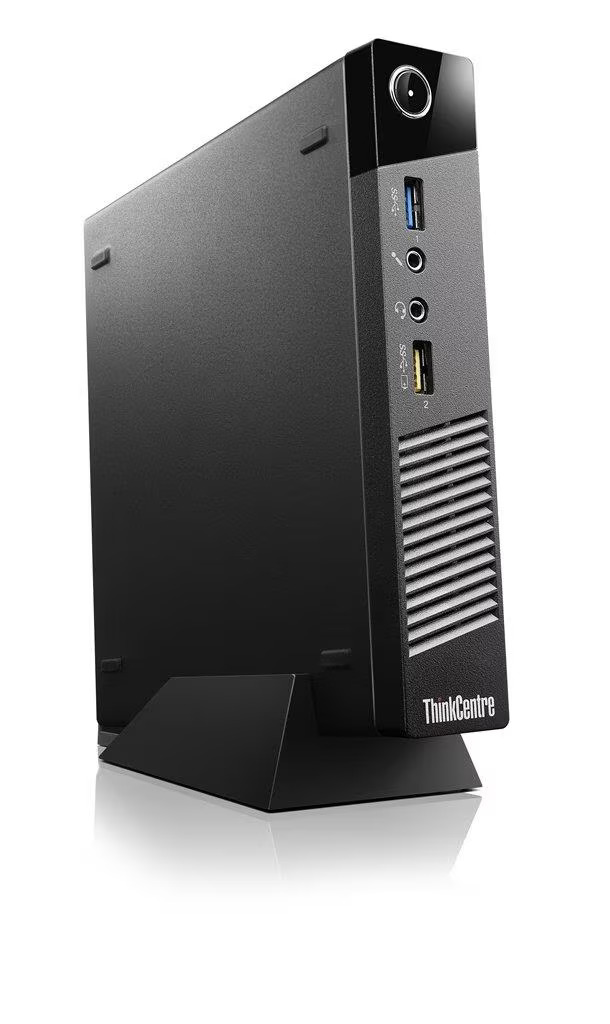

ThinkCentre M73 Tiny 2014 Intel G1820T

CPU

Cores: 2
Threads: 2
Base freq: 2.4 GHz
Max freq: Unknown
Architecture: Haswell
Year: 2014
Geekbench single: 221
Geekbench multi: 258
Process: 22 nm
Cache: 2 MB
Rating: 0.5%
Rank: 206th out of 206
TDP: 35 W
Graphics: Intel® HD Graphics for 4th Generation Intel® Processors
Memory CPU memory maximum from Intel. Use the RAM card and factory max specs to verify platform-supported capacity.: DDR3-1333, DDR3L-1333 @ 1.5V / 32 GB / 2 channels
PCIe: PCIe Up to 3.0 / 16 lanes / Up to 1x16, 2x8, 1x8+2x4

Layout: 1x SATA 2.5" + 1x DOM module
Factory: 500GB: 1x 500GB HDD 7200rpm

16GB: 1x 16GB DOM module

8GB: 1x 8GB DOM module

Rear: 3x USB-A 2.0

1x VGA DB-15

1x DisplayPort

1x Ethernet RJ-45
Front: 2x USB-A 3.0 (Always On)

1x Microphone (3.5mm)

1x Headphone/microphone combo (3.5mm)
Optional I/O box External Lenovo Tiny I/O box attachment. These ports are add-on ports and may occupy one or more rear USB ports.: 1x Serial

2x PS/2

2x USB-A 2.0

2x USB-A 2.0
Optional rear: Optional port: 1x USB-A 2.0 / 1x Serial

Integrated NIC: I217-V: 1x 1GbE RJ-45 Ethernet
Compatible network adapters: Intel 2230: Half Mini PCIe Wi-Fi 4 + BT

Intel 6235: Half Mini PCIe Wi-Fi 4 + BT

Realtek RTL8723BE: Half Mini PCIe Wi-Fi 4 + BT 4.0
Factory network adapters: Broadcom BCM4352: Half Mini PCIe Wi-Fi 5 + BT 4.0

Intel 105: Half Mini PCIe Wi-Fi 4

Intel 7260: Half Mini PCIe Wi-Fi 4 + BT

Intel 7260: Half Mini PCIe Wi-Fi 5 + BT

Actual Lenovo model codes found with this CPU, grouped by the RAM, storage, and network options they shipped with.

Code	RAM	Storage	Network
10AX	1x 4GB	1x 500GB 7200 rpm	I217-V: 1x 1GbE RJ-45 Ethernet Intel 7260 Half Mini PCIe Wi-Fi 4 + BT
10AX	1x 4GB	1x 500GB 7200 rpm	I217-V: 1x 1GbE RJ-45 Ethernet Broadcom BCM4352 Half Mini PCIe Wi-Fi 5 + BT 4.0
10AY	1x 4GB	1x 500GB 7200 rpm	I217-V: 1x 1GbE RJ-45 Ethernet Intel 7260 Half Mini PCIe Wi-Fi 5 + BT
10DK	1x 4GB	1x 16GB DOM Card	I217-V: 1x 1GbE RJ-45 Ethernet
10DL	1x 4GB	1x 16GB DOM Card	I217-V: 1x 1GbE RJ-45 Ethernet
10AY	1x 4GB	1x 8GB DOM Card	I217-V: 1x 1GbE RJ-45 Ethernet Intel 105 Half Mini PCIe Wi-Fi 4
10DK	1x 4GB	1x 8GB DOM Card	I217-V: 1x 1GbE RJ-45 Ethernet
10DL	1x 4GB	1x 8GB DOM Card	I217-V: 1x 1GbE RJ-45 Ethernet
10DK	1x 2GB	1x 16GB DOM Card	I217-V: 1x 1GbE RJ-45 Ethernet
10DL	1x 2GB	1x 16GB DOM Card	I217-V: 1x 1GbE RJ-45 Ethernet
10AX	1x 2GB	1x 8GB DOM Card	I217-V: 1x 1GbE RJ-45 Ethernet Intel 105 Half Mini PCIe Wi-Fi 4
10AY	1x 2GB	1x 8GB DOM Card	I217-V: 1x 1GbE RJ-45 Ethernet Intel 105 Half Mini PCIe Wi-Fi 4
10DK	1x 2GB	1x 8GB DOM Card	I217-V: 1x 1GbE RJ-45 Ethernet
10DL	1x 2GB	1x 8GB DOM Card	I217-V: 1x 1GbE RJ-45 Ethernet
