ThinkCentre M73 Tiny 2014 Intel G3240T

ThinkCentre M73 Tiny

CPU

Cores
2
Threads
2
Base freq
2.7 GHz
Max freq
Unknown
Architecture
Haswell
Year
2014
Geekbench single
492
Geekbench multi
830
Process
22 nm
Cache
3 MB
Rating
6.8%
Rank
193rd out of 206
TDP
35 W
Graphics
Intel® HD Graphics for 4th Generation Intel® Processors
Memory CPU memory maximum from Intel. Use the RAM card and factory max specs to verify platform-supported capacity.
DDR3-1333, DDR3L-1333 @ 1.5V / 32 GB / 2 channels
PCIe
PCIe Up to 3.0 / 16 lanes / Up to 1x16, 2x8, 1x8+2x4

RAM

Platform max
16GB: 2x 8GB DDR3-1600 SO-DIMM
Factory
  • 4GB: 1x 4GB DDR3-1600

Storage

Layout
1x SATA 2.5"
Factory
  • 500GB: 1x 500GB HDD 7200rpm
  • 500GB: 1x 500GB HDD 5400rpm

I/O Ports

Rear
  • 3x USB-A 2.0
  • 1x VGA DB-15
  • 1x DisplayPort
  • 1x Ethernet RJ-45
Front
  • 2x USB-A 3.0 (Always On)
  • 1x Microphone (3.5mm)
  • 1x Headphone/microphone combo (3.5mm)

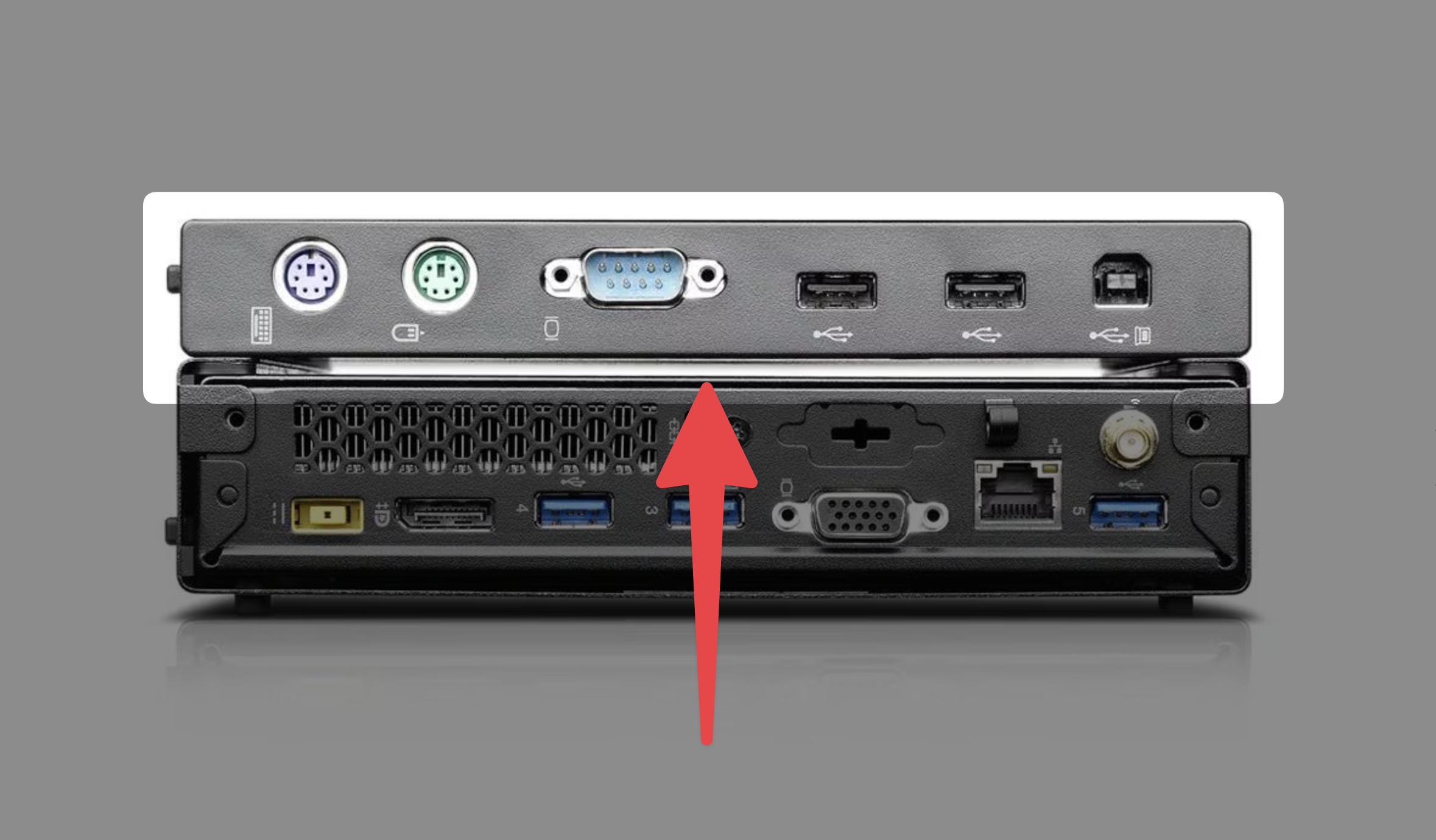

Optional I/O box External Lenovo Tiny I/O box attachment. These ports are add-on ports and may occupy one or more rear USB ports. Optional Lenovo Tiny I/O box mounted above the rear ports
  • 1x Serial
  • 2x PS/2
  • 2x USB-A 2.0
  • 2x USB-A 2.0
Optional rear
  • Optional port: 1x USB-A 2.0 / 1x Serial

Network

Integrated NIC
  • I217-V: 1x 1GbE RJ-45 Ethernet
Compatible network adapters
  • Broadcom BCM4352: Half Mini PCIe Wi-Fi 5 + BT 4.0
  • Intel 105: Half Mini PCIe Wi-Fi 4
  • Intel 2230: Half Mini PCIe Wi-Fi 4 + BT
  • Intel 6235: Half Mini PCIe Wi-Fi 4 + BT
Factory network adapters
  • Intel 7260: Half Mini PCIe Wi-Fi 4 + BT
  • Realtek RTL8723BE: Half Mini PCIe Wi-Fi 4 + BT 4.0

Known configurations

Actual Lenovo model codes found with this CPU, grouped by the RAM, storage, and network options they shipped with.

Code RAM Storage Network
10AY
  • 1x 4GB
  • 1x 500GB 5400 rpm
  • I217-V: 1x 1GbE RJ-45 Ethernet
  • Realtek RTL8723BE Half Mini PCIe Wi-Fi 4 + BT 4.0
10AY
  • 1x 4GB
  • 1x 500GB 7200 rpm
  • I217-V: 1x 1GbE RJ-45 Ethernet
  • Intel 7260 Half Mini PCIe Wi-Fi 4 + BT
