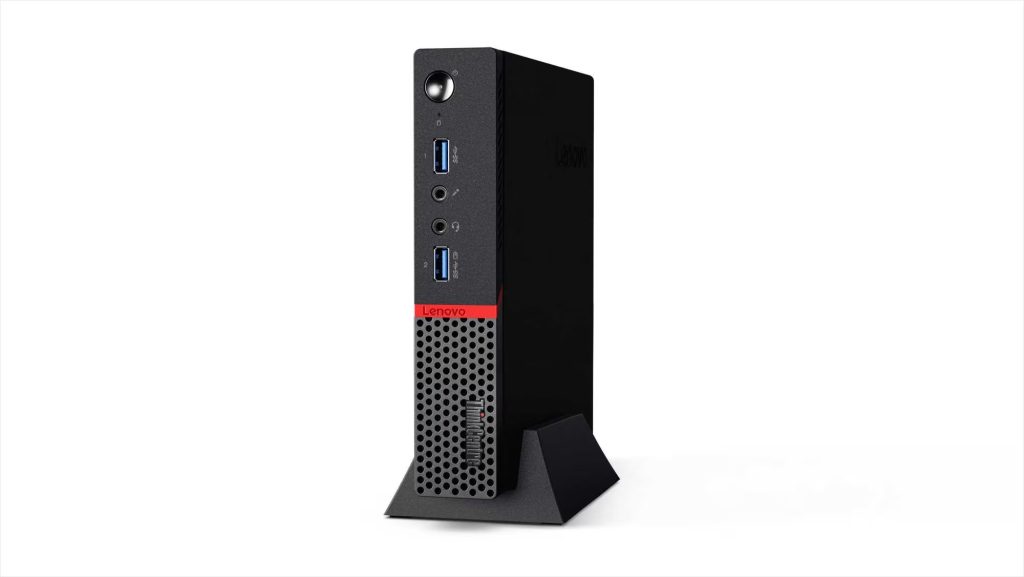

ThinkCentre M900 Tiny 2015 Intel i5-6500T

CPU

Cores: 4
Threads: 4
Base freq: 2.5 GHz
Max freq: 3.1 GHz
Architecture: Skylake-S
Year: 2015
Geekbench single: 1,044
Geekbench multi: 2,829
Process: 14 nm
Cache: 6 MB
Rating: 28.2%
Rank: 149th out of 206
TDP: 35 W
Graphics: Intel® HD Graphics 530
Memory CPU memory maximum from Intel. Use the RAM card and factory max specs to verify platform-supported capacity.: DDR4-1866/2133, DDR3L-1333/1600 @ 1.35V / 64 GB / 2 channels
PCIe: PCIe 3.0 / 16 lanes / Up to 1x16, 2x8, 1x8+2x4

RAM

Platform max: 32GB: 2x 16GB DDR4-2133 SO-DIMM
Factory: 8GB: 1x 8GB DDR4-2133

4GB: 1x 4GB DDR4-2133

Storage

Layout: 1x M.2 NVMe + 1x SATA 2.5"
Factory: 1000GB: 1x 1000GB 2.5" HDD 5400rpm

628GB: 1x 128GB M.2 SSD + 1x 500GB 2.5" HDD 7200rpm

628GB: 1x 128GB M.2 NVMe SSD + 1x 500GB 2.5" HDD 7200rpm

512GB: 1x 512GB 2.5" SSD

500GB: 1x 500GB 2.5" SSHD 5400rpm

500GB: 1x 500GB 2.5" HDD 7200rpm

256GB: 1x 256GB M.2 NVMe SSD

256GB: 1x 256GB 2.5" SSD

192GB: 1x 192GB 2.5" SSD

180GB: 1x 180GB 2.5" SSD

128GB: 1x 128GB 2.5" SSD

128GB: 1x 128GB M.2 NVMe SSD

120GB: 1x 120GB 2.5" SSD

I/O Ports

Rear: 4x USB-A 3.0

2x DisplayPort

1x Headphone

1x Ethernet RJ-45
Front: 2x USB-A 3.0 (Always On; fast charge)

1x Microphone (3.5mm)

1x Headphone/microphone combo (3.5mm)
Optional I/O box External Lenovo Tiny I/O box attachment. These ports are add-on ports and may occupy one or more rear USB ports.: 1x Serial

2x USB-A 2.0

2x USB-A 3.0

2x USB-A 2.0
Optional rear: Optional port: 1x VGA / 1x DisplayPort / 1x HDMI / 1x Serial

Network

Integrated NIC: I219-LM: 1x 1GbE RJ-45 Ethernet
Compatible network adapters: Intel 3165: M.2 PCIe Wi-Fi 5 + BT 4.0

Qualcomm QCA6174: M.2 PCIe Wi-Fi 5 + BT 4.1

Qualcomm QCA9377: M.2 PCIe Wi-Fi 5 + BT 4.1
Factory network adapters: Intel 8260: M.2 PCIe Wi-Fi 5 + BT 4.1 + vPro

Known configurations

Actual Lenovo model codes found with this CPU, grouped by the RAM, storage, and network options they shipped with.

Code	RAM	Storage	Network
10FM	1x 8GB	1x 1000GB 5400rpm 2.5"	I219-LM: 1x 1GbE RJ-45 Ethernet Intel 8260 M.2 PCIe Wi-Fi 5 + BT 4.1 + vPro
10FM	1x 8GB	1x 500GB 7200rpm 2.5" 1x 128GB SSD M.2	I219-LM: 1x 1GbE RJ-45 Ethernet Intel 8260 M.2 PCIe Wi-Fi 5 + BT 4.1 + vPro
10NE	1x 8GB	1x 512GB SSD	I219-LM: 1x 1GbE RJ-45 Ethernet Intel 8260 M.2 PCIe Wi-Fi 5 + BT 4.1 + vPro
10FL	1x 8GB	1x 500GB 7200rpm 2.5"	I219-LM: 1x 1GbE RJ-45 Ethernet Intel 8260 M.2 PCIe Wi-Fi 5 + BT 4.1 + vPro
10FM	1x 8GB	1x 500GB 7200rpm 2.5"	I219-LM: 1x 1GbE RJ-45 Ethernet Intel 8260 M.2 PCIe Wi-Fi 5 + BT 4.1 + vPro
10NE	1x 8GB	1x 500GB 7200rpm 2.5"	I219-LM: 1x 1GbE RJ-45 Ethernet Intel 8260 M.2 PCIe Wi-Fi 5 + BT 4.1 + vPro
10FL	1x 8GB	1x 256GB SSD	I219-LM: 1x 1GbE RJ-45 Ethernet Intel 8260 M.2 PCIe Wi-Fi 5 + BT 4.1 + vPro
10FM	1x 8GB	1x 256GB SSD	I219-LM: 1x 1GbE RJ-45 Ethernet
10FM	1x 8GB	1x 256GB SSD	I219-LM: 1x 1GbE RJ-45 Ethernet Intel 8260 M.2 PCIe Wi-Fi 5 + BT 4.1 + vPro
10NE	1x 8GB	1x 256GB SSD	I219-LM: 1x 1GbE RJ-45 Ethernet Intel 8260 M.2 PCIe Wi-Fi 5 + BT 4.1 + vPro
10FM	1x 8GB	1x 256GB SSD M.2 PCIe NVMe	I219-LM: 1x 1GbE RJ-45 Ethernet Intel 8260 M.2 PCIe Wi-Fi 5 + BT 4.1 + vPro
10NE	1x 8GB	1x 256GB SSD M.2 PCIe NVMe	I219-LM: 1x 1GbE RJ-45 Ethernet Intel 8260 M.2 PCIe Wi-Fi 5 + BT 4.1 + vPro
10FM	1x 8GB	1x 192GB SSD	I219-LM: 1x 1GbE RJ-45 Ethernet Intel 8260 M.2 PCIe Wi-Fi 5 + BT 4.1 + vPro
10FM	1x 8GB	1x 180GB SSD	I219-LM: 1x 1GbE RJ-45 Ethernet Intel 8260 M.2 PCIe Wi-Fi 5 + BT 4.1 + vPro
10FL	1x 8GB	1x 128GB SSD	I219-LM: 1x 1GbE RJ-45 Ethernet Intel 8260 M.2 PCIe Wi-Fi 5 + BT 4.1 + vPro
10FM	1x 8GB	1x 128GB SSD	I219-LM: 1x 1GbE RJ-45 Ethernet Intel 8260 M.2 PCIe Wi-Fi 5 + BT 4.1 + vPro
10FM	1x 4GB	1x 1000GB 5400rpm 2.5"	I219-LM: 1x 1GbE RJ-45 Ethernet Intel 8260 M.2 PCIe Wi-Fi 5 + BT 4.1 + vPro
10FM	1x 4GB	1x 500GB 7200rpm 2.5" 1x 128GB SSD M.2 PCIe NVMe	I219-LM: 1x 1GbE RJ-45 Ethernet Intel 8260 M.2 PCIe Wi-Fi 5 + BT 4.1 + vPro
10NE	1x 4GB	1x 500GB 7200rpm 2.5" 1x 128GB SSD M.2 PCIe NVMe	I219-LM: 1x 1GbE RJ-45 Ethernet Intel 8260 M.2 PCIe Wi-Fi 5 + BT 4.1 + vPro
10FM	1x 4GB	1x 500GB (8GB) SSHD 5400rpm 2.5"	I219-LM: 1x 1GbE RJ-45 Ethernet Intel 8260 M.2 PCIe Wi-Fi 5 + BT 4.1 + vPro
10FL	1x 4GB	1x 500GB 7200rpm 2.5"	I219-LM: 1x 1GbE RJ-45 Ethernet Intel 8260 M.2 PCIe Wi-Fi 5 + BT 4.1 + vPro
10FL	1x 4GB	1x 500GB 7200rpm 2.5"	I219-LM: 1x 1GbE RJ-45 Ethernet
10FM	1x 4GB	1x 500GB 7200rpm 2.5"	I219-LM: 1x 1GbE RJ-45 Ethernet Intel 8260 M.2 PCIe Wi-Fi 5 + BT 4.1 + vPro
10NE	1x 4GB	1x 500GB 7200rpm 2.5"	I219-LM: 1x 1GbE RJ-45 Ethernet Intel 8260 M.2 PCIe Wi-Fi 5 + BT 4.1 + vPro
10FM	1x 4GB	1x 192GB SSD	I219-LM: 1x 1GbE RJ-45 Ethernet Intel 8260 M.2 PCIe Wi-Fi 5 + BT 4.1 + vPro
10FM	1x 4GB	1x 128GB SSD	I219-LM: 1x 1GbE RJ-45 Ethernet Intel 8260 M.2 PCIe Wi-Fi 5 + BT 4.1 + vPro
10NE	1x 4GB	1x 128GB SSD	I219-LM: 1x 1GbE RJ-45 Ethernet Intel 8260 M.2 PCIe Wi-Fi 5 + BT 4.1 + vPro
10FM	1x 4GB	1x 128GB SSD M.2 PCIe NVMe	I219-LM: 1x 1GbE RJ-45 Ethernet Intel 8260 M.2 PCIe Wi-Fi 5 + BT 4.1 + vPro
10NE	1x 4GB	1x 128GB SSD M.2 PCIe NVMe	I219-LM: 1x 1GbE RJ-45 Ethernet Intel 8260 M.2 PCIe Wi-Fi 5 + BT 4.1 + vPro
10FL	1x 4GB	1x 120GB SSD	I219-LM: 1x 1GbE RJ-45 Ethernet Intel 8260 M.2 PCIe Wi-Fi 5 + BT 4.1 + vPro
10FM	1x 4GB	1x 120GB SSD	I219-LM: 1x 1GbE RJ-45 Ethernet Intel 8260 M.2 PCIe Wi-Fi 5 + BT 4.1 + vPro
