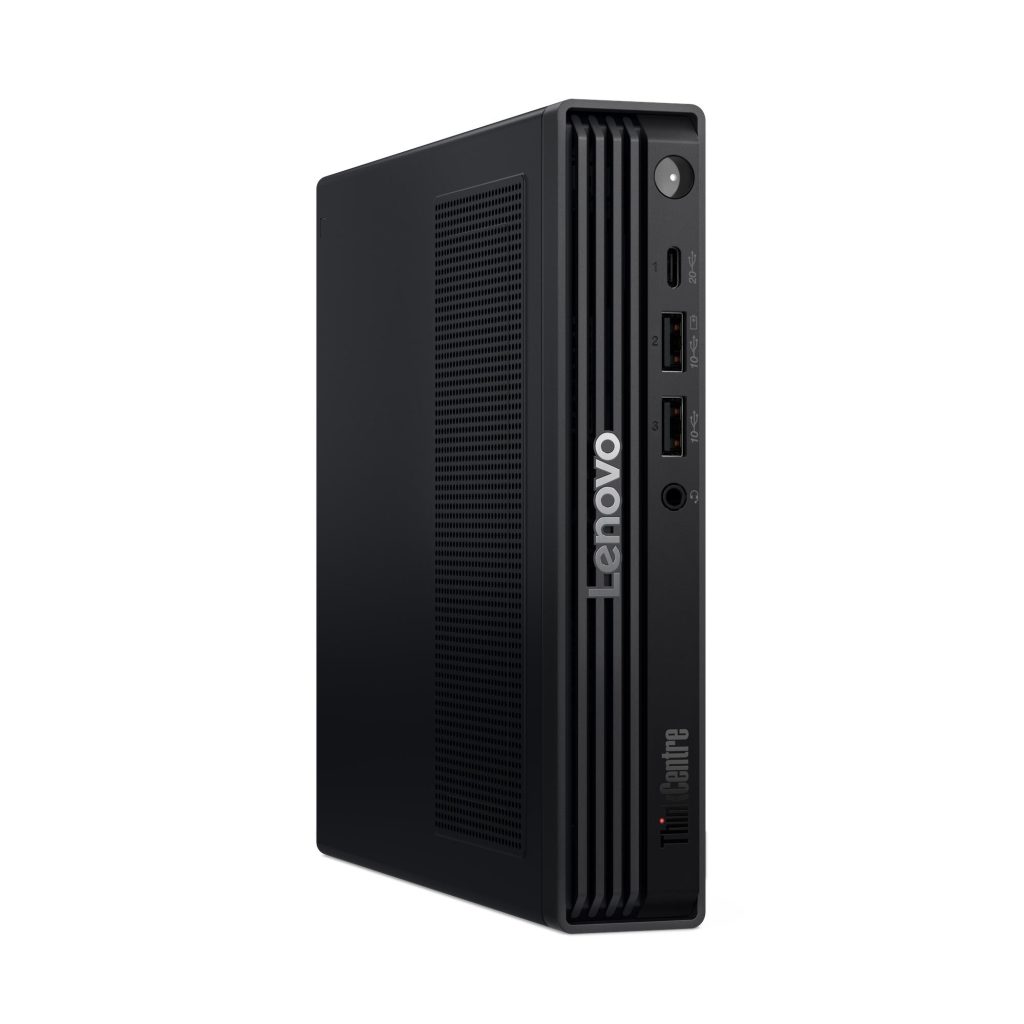

ThinkCentre M90q Gen 6 2025 Intel Ultra 5 235

CPU

Cores: 14
Threads: 14
Base freq: 2.9 GHz
Max freq: 5 GHz
Architecture: Arrow Lake
Year: 2025
Geekbench single: 3,082
Geekbench multi: 15,984
Process: Unknown
Cache: 24 MB
Rating: 97.1%
Rank: 7th out of 206
TDP: 65 W
Graphics: Intel® Graphics
Memory CPU memory maximum from Intel. Use the RAM card and factory max specs to verify platform-supported capacity.: Up to DDR5 6400 MT/s / 256 GB / 2 channels
PCIe: PCIe 5.0 and 4.0 / 24 lanes / Up to 1x16+2x4, 2x8+2x4, 1x8+4x4

RAM

Platform max: 64GB: 2x 32GB DDR5-5600 SO-DIMM
Factory: 32GB: 1x 32GB DDR5-5600

16GB: 1x 16GB DDR5-5600

8GB: 1x 8GB DDR5-5600

Storage

Layout: 2x M.2 NVMe
Factory: 1000GB: 1x 1000GB M.2 NVMe SSD

512GB: 2x 256GB M.2 NVMe SSD

512GB: 1x 512GB M.2 NVMe SSD

256GB: 1x 256GB M.2 NVMe SSD

I/O Ports

Rear: 1x USB-A 3.2 Gen 1

3x USB-A 3.2 Gen 2 (Smart Power On; one port only)

1x HDMI 2.1 TMDS

1x DisplayPort 1.4

1x Ethernet RJ-45
Front: 1x USB-C 3.2 Gen 2x2 (data transfer; data only)

1x USB-A 3.2 Gen 2 (Always On)

1x USB-A 3.2 Gen 2

1x Headphone/microphone combo (3.5mm)
Optional rear: Punch out port 1: 1x VGA / 1x DisplayPort / 1x HDMI 4 / 1x HDMI 8 / 1x Serial / 1x USB-C (DisplayPort Alt Mode; power delivery; PD-in 100W) / 1x Ethernet RJ-45 / Punch out port 2: 1x VGA / 1x DisplayPort / 1x HDMI 4 / 1x HDMI 8 / 1x Ethernet RJ-45 / 1x Serial / 1x USB-C Thunderbolt 4 / 2x USB-A 3.2 Gen 2 (shared bandwidth) / 4x USB-A 3.2 Gen 2 (shared bandwidth) / 4x Ethernet RJ-45 (via additional PCIe adapter) / 4x Serial (via expansion card; via PCIe x1)

Network

Integrated NIC: I219-LM: 1x 1GbE RJ-45 Ethernet
Compatible network adapters: RTL8125BGS: PCIe 1x 2.5GbE RJ-45 Ethernet

PCIe 4x 1GbE RJ-45 Ethernet
Factory network adapters: Intel AX203: M.2 PCIe Wi-Fi 6 + BT 5.2

Intel AX211: M.2 PCIe Wi-Fi 6E + BT 5.3 + vPro

Intel BE200: M.2 PCIe Wi-Fi 7 + BT 5.4 + vPro

Realtek RTL8852CE: M.2 PCIe Wi-Fi 6E + BT 5.3

Known configurations

Actual Lenovo model codes found with this CPU, grouped by the RAM, storage, and network options they shipped with.

Code	RAM	Storage	Network
13AC	1x 32GB SODIMM DDR5-5600	1x 1000GB SSD M.2 2280 PCIe 4.0x4 NVMe	I219-LM: 1x 1GbE RJ-45 Ethernet Intel AX211 M.2 PCIe Wi-Fi 6E + BT 5.3 + vPro
13AC	1x 32GB SODIMM DDR5-5600	1x 512GB SSD M.2 2280 PCIe 4.0x4 NVMe	I219-LM: 1x 1GbE RJ-45 Ethernet Intel AX211 M.2 PCIe Wi-Fi 6E + BT 5.3 + vPro
13AC	1x 32GB SODIMM DDR5-5600	1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe	I219-LM: 1x 1GbE RJ-45 Ethernet Intel AX211 M.2 PCIe Wi-Fi 6E + BT 5.3 + vPro
13AC	1x 16GB SODIMM DDR5-5600	1x 1000GB SSD M.2 2280 PCIe 4.0x4 NVMe	I219-LM: 1x 1GbE RJ-45 Ethernet Intel AX211 M.2 PCIe Wi-Fi 6E + BT 5.3 + vPro
13AC	1x 16GB SODIMM DDR5-5600	1x 512GB SSD M.2 2280 PCIe 4.0x4 NVMe	I219-LM: 1x 1GbE RJ-45 Ethernet Intel AX211 M.2 PCIe Wi-Fi 6E + BT 5.3 + vPro
13AC	1x 16GB SODIMM DDR5-5600	1x 512GB SSD M.2 2280 PCIe 4.0x4 NVMe	I219-LM: 1x 1GbE RJ-45 Ethernet Realtek RTL8852CE M.2 PCIe Wi-Fi 6E + BT 5.3
13AC	1x 16GB SODIMM DDR5-5600	1x 512GB SSD M.2 2280 PCIe 4.0x4 NVMe	I219-LM: 1x 1GbE RJ-45 Ethernet Intel AX203 M.2 PCIe Wi-Fi 6 + BT 5.2
13AD	1x 16GB SODIMM DDR5-5600	1x 512GB SSD M.2 2280 PCIe 4.0x4 Performance NVMe	I219-LM: 1x 1GbE RJ-45 Ethernet Intel BE200 M.2 PCIe Wi-Fi 7 + BT 5.4 + vPro
13AD	1x 16GB SODIMM DDR5-5600	2x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe	I219-LM: 1x 1GbE RJ-45 Ethernet Intel AX203 M.2 PCIe Wi-Fi 6 + BT 5.2
13AC	1x 16GB SODIMM DDR5-5600	1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe	I219-LM: 1x 1GbE RJ-45 Ethernet Intel AX211 M.2 PCIe Wi-Fi 6E + BT 5.3 + vPro
13AC	1x 8GB SODIMM DDR5-5600	1x 1000GB SSD M.2 2280 PCIe 4.0x4 NVMe	I219-LM: 1x 1GbE RJ-45 Ethernet Intel BE200 M.2 PCIe Wi-Fi 7 + BT 5.4 + vPro
13AC	1x 8GB SODIMM DDR5-5600	1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe	I219-LM: 1x 1GbE RJ-45 Ethernet Intel AX211 M.2 PCIe Wi-Fi 6E + BT 5.3 + vPro
