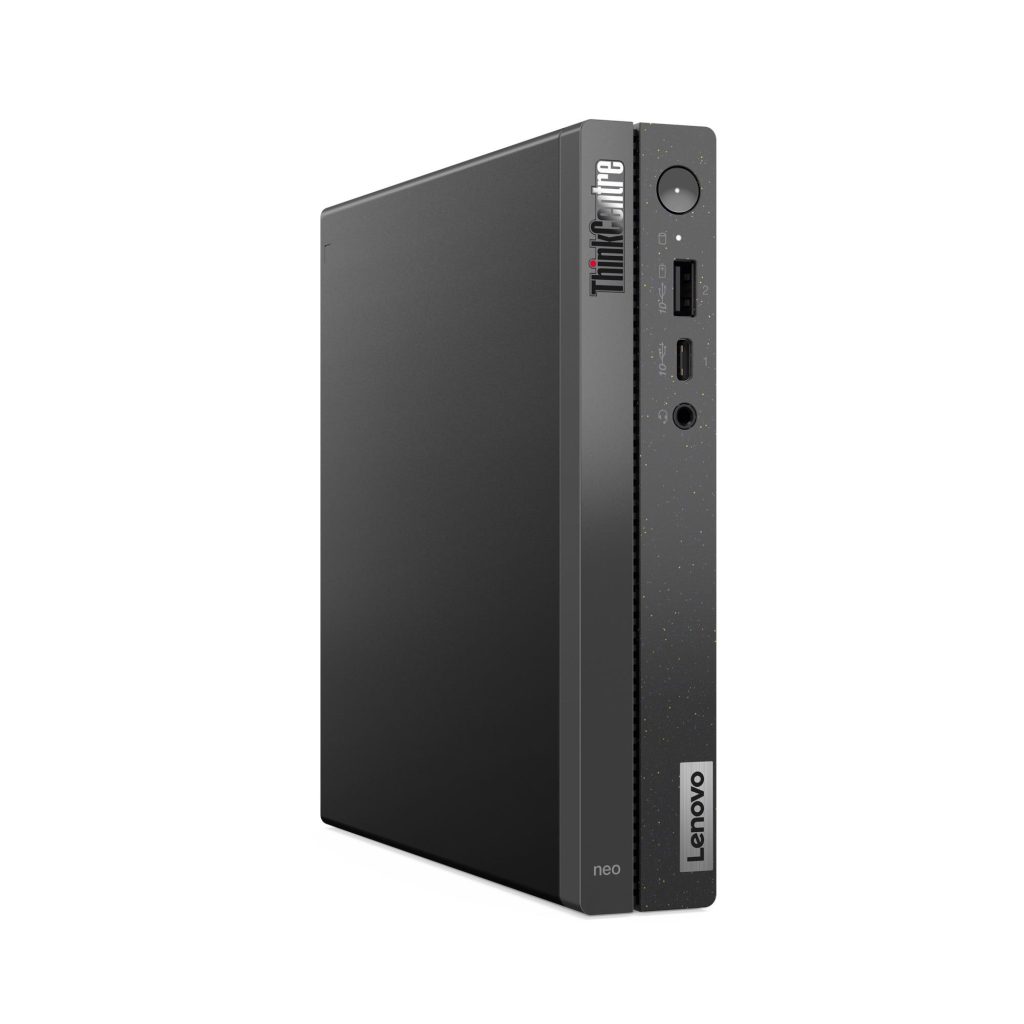

ThinkCentre neo 50q Gen 4 2023 Intel i5-13420H

CPU

Cores: 8
Threads: 12
Base freq: 4.6 GHz
Max freq: 4.6 GHz
Architecture: Raptor Lake-H
Year: 2023
Geekbench single: 2,026
Geekbench multi: 7,391
Process: Intel 7
Cache: 12 MB
Rating: 74.8%
Rank: 53rd out of 206
TDP: 45 W
Graphics: Intel® UHD Graphics for 13th Gen Intel® Processors
Memory CPU memory maximum from Intel. Use the RAM card and factory max specs to verify platform-supported capacity.: Up to DDR5 5200 MT/s Up to DDR4 3200 MT/s Up to LPDDR5/x 5200 MT/s Up to LPDDR4x 4267 MT/s / 96 GB / 2 channels
PCIe: 28 lanes

RAM

Platform max: 32GB: 2x 16GB DDR4-3200 SO-DIMM
Factory: 32GB: 2x 16GB DDR4-3200

16GB: 2x 8GB DDR4-3200

16GB: 1x 16GB DDR4-3200

8GB: 1x 8GB DDR4-3200

Storage

Layout: 1x M.2 NVMe + 1x SATA 2.5"
Factory: 1512GB: 1x 512GB M.2 NVMe SSD + 1x 1000GB 2.5" HDD 7200rpm

1256GB: 1x 256GB M.2 NVMe SSD + 1x 1000GB 2.5" HDD 7200rpm

1128GB: 1x 128GB M.2 NVMe SSD + 1x 1000GB 2.5" HDD 7200rpm

1000GB: 1x 1000GB 2.5" HDD 7200rpm

1000GB: 1x 1000GB M.2 NVMe SSD

512GB: 1x 512GB M.2 NVMe SSD

256GB: 1x 256GB M.2 NVMe SSD

128GB: 1x 128GB M.2 NVMe SSD

I/O Ports

Rear: 1x HDMI 2.1 TMDS

1x DisplayPort 1.4

2x USB-A 2.0

2x USB-A 3.2 Gen 2

1x Ethernet RJ-45
Front: 1x USB-A 3.2 Gen 2 (Always On; charging)

1x USB-C 3.2 Gen 2 (charging; data transfer)

1x Headphone/microphone combo (3.5mm)
Optional rear: 1x VGA / 1x DisplayPort 1.4 / 1x Serial

Network

Integrated NIC: RTL8111K: 1x 1GbE RJ-45 Ethernet
Factory network adapters: Intel AX201: M.2 PCIe Wi-Fi 6 + BT 5.2

Realtek RTL8852BE: M.2 PCIe Wi-Fi 6 + BT 5.2

Known configurations

Actual Lenovo model codes found with this CPU, grouped by the RAM, storage, and network options they shipped with.

Code	RAM	Storage	Network
12LM	2x 16GB SODIMM DDR4-3200	1x 512GB SSD M.2 2280 PCIe 4.0x4 NVMe 1x 1000GB HDD 7200rpm 2.5"	RTL8111K: 1x 1GbE RJ-45 Ethernet
12LM	2x 16GB SODIMM DDR4-3200	1x 1000GB SSD M.2 2280 PCIe 4.0x4 NVMe	RTL8111K: 1x 1GbE RJ-45 Ethernet Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.2
12LN	2x 16GB SODIMM DDR4-3200	1x 1000GB SSD M.2 2280 PCIe 4.0x4 NVMe	RTL8111K: 1x 1GbE RJ-45 Ethernet Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.2
12LM	2x 16GB SODIMM DDR4-3200	1x 512GB SSD M.2 2280 PCIe 4.0x4 NVMe	RTL8111K: 1x 1GbE RJ-45 Ethernet Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.2
12LM	2x 16GB SODIMM DDR4-3200	1x 512GB SSD M.2 2280 PCIe 4.0x4 NVMe	RTL8111K: 1x 1GbE RJ-45 Ethernet
12LN	2x 16GB SODIMM DDR4-3200	1x 128GB SSD M.2 2242 PCIe 3.0x4 NVMe	RTL8111K: 1x 1GbE RJ-45 Ethernet Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.2
12LN	1x 16GB SODIMM DDR4-3200	1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe 1x 1000GB HDD 7200rpm 2.5"	RTL8111K: 1x 1GbE RJ-45 Ethernet Realtek RTL8852BE M.2 PCIe Wi-Fi 6 + BT 5.2
12LM	1x 16GB SODIMM DDR4-3200	1x 1000GB HDD 7200rpm 2.5"	RTL8111K: 1x 1GbE RJ-45 Ethernet
12LM	1x 16GB SODIMM DDR4-3200	1x 1000GB SSD M.2 2280 PCIe 4.0x4 NVMe	RTL8111K: 1x 1GbE RJ-45 Ethernet Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.2
12LM	1x 16GB SODIMM DDR4-3200	1x 1000GB SSD M.2 2280 PCIe 4.0x4 NVMe	RTL8111K: 1x 1GbE RJ-45 Ethernet
12LN	1x 16GB SODIMM DDR4-3200	1x 1000GB SSD M.2 2280 PCIe 4.0x4 NVMe	RTL8111K: 1x 1GbE RJ-45 Ethernet Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.2
12LM	1x 16GB SODIMM DDR4-3200	1x 512GB SSD M.2 2280 PCIe 4.0x4 NVMe	RTL8111K: 1x 1GbE RJ-45 Ethernet Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.2
12LM	1x 16GB SODIMM DDR4-3200	1x 512GB SSD M.2 2280 PCIe 4.0x4 NVMe	RTL8111K: 1x 1GbE RJ-45 Ethernet
12LM	1x 16GB SODIMM DDR4-3200	1x 512GB SSD M.2 2280 PCIe 4.0x4 NVMe	RTL8111K: 1x 1GbE RJ-45 Ethernet Realtek RTL8852BE M.2 PCIe Wi-Fi 6 + BT 5.2
12LN	1x 16GB SODIMM DDR4-3200	1x 512GB SSD M.2 2280 PCIe 4.0x4 NVMe	RTL8111K: 1x 1GbE RJ-45 Ethernet
12LN	1x 16GB SODIMM DDR4-3200	1x 512GB SSD M.2 2280 PCIe 4.0x4 NVMe	RTL8111K: 1x 1GbE RJ-45 Ethernet Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.2
12LN	1x 16GB SODIMM DDR4-3200	1x 512GB SSD M.2 2280 PCIe 4.0x4 NVMe	RTL8111K: 1x 1GbE RJ-45 Ethernet Realtek RTL8852BE M.2 PCIe Wi-Fi 6 + BT 5.2
12LQ	1x 16GB SODIMM DDR4-3200	1x 512GB SSD M.2 2280 PCIe 4.0x4 NVMe	RTL8111K: 1x 1GbE RJ-45 Ethernet Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.2
12LR	1x 16GB SODIMM DDR4-3200	1x 512GB SSD M.2 2280 PCIe 4.0x4 NVMe	RTL8111K: 1x 1GbE RJ-45 Ethernet Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.2
12LM	2x 8GB SODIMM DDR4-3200	1x 512GB SSD M.2 2280 PCIe 4.0x4 NVMe	RTL8111K: 1x 1GbE RJ-45 Ethernet
12LM	2x 8GB SODIMM DDR4-3200	1x 512GB SSD M.2 2280 PCIe 4.0x4 NVMe	RTL8111K: 1x 1GbE RJ-45 Ethernet Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.2
12LN	2x 8GB SODIMM DDR4-3200	1x 512GB SSD M.2 2280 PCIe 4.0x4 NVMe	RTL8111K: 1x 1GbE RJ-45 Ethernet Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.2
12LN	2x 8GB SODIMM DDR4-3200	1x 512GB SSD M.2 2280 PCIe 4.0x4 NVMe	RTL8111K: 1x 1GbE RJ-45 Ethernet
12LQ	2x 8GB SODIMM DDR4-3200	1x 512GB SSD M.2 2280 PCIe 4.0x4 NVMe	RTL8111K: 1x 1GbE RJ-45 Ethernet
12LM	1x 16GB SODIMM DDR4-3200	1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe	RTL8111K: 1x 1GbE RJ-45 Ethernet Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.2
12LM	1x 16GB SODIMM DDR4-3200	1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe	RTL8111K: 1x 1GbE RJ-45 Ethernet
12LN	1x 16GB SODIMM DDR4-3200	1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe	RTL8111K: 1x 1GbE RJ-45 Ethernet Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.2
12LN	1x 16GB SODIMM DDR4-3200	1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe	RTL8111K: 1x 1GbE RJ-45 Ethernet
12LM	2x 8GB SODIMM DDR4-3200	1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe	RTL8111K: 1x 1GbE RJ-45 Ethernet Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.2
12LM	2x 8GB SODIMM DDR4-3200	1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe	RTL8111K: 1x 1GbE RJ-45 Ethernet
12LN	2x 8GB SODIMM DDR4-3200	1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe	RTL8111K: 1x 1GbE RJ-45 Ethernet Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.2
12LR	1x 8GB SODIMM DDR4-3200	1x 512GB SSD M.2 2280 PCIe 4.0x4 NVMe 1x 1000GB HDD 7200rpm 2.5"	RTL8111K: 1x 1GbE RJ-45 Ethernet Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.2
12LN	1x 8GB SODIMM DDR4-3200	1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe 1x 1000GB HDD 7200rpm 2.5"	RTL8111K: 1x 1GbE RJ-45 Ethernet Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.2
12LN	1x 8GB SODIMM DDR4-3200	1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe 1x 1000GB HDD 7200rpm 2.5"	RTL8111K: 1x 1GbE RJ-45 Ethernet Realtek RTL8852BE M.2 PCIe Wi-Fi 6 + BT 5.2
12LM	1x 8GB SODIMM DDR4-3200	1x 128GB SSD M.2 2242 PCIe 3.0x4 NVMe 1x 1000GB HDD 7200rpm 2.5"	RTL8111K: 1x 1GbE RJ-45 Ethernet
12LM	1x 8GB SODIMM DDR4-3200	1x 1000GB HDD 7200rpm 2.5"	RTL8111K: 1x 1GbE RJ-45 Ethernet
12LN	1x 8GB SODIMM DDR4-3200	1x 1000GB HDD 7200rpm 2.5"	RTL8111K: 1x 1GbE RJ-45 Ethernet Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.2
12LM	1x 8GB SODIMM DDR4-3200	1x 1000GB SSD M.2 2280 PCIe 4.0x4 NVMe	RTL8111K: 1x 1GbE RJ-45 Ethernet Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.2
12LM	1x 8GB SODIMM DDR4-3200	1x 1000GB SSD M.2 2280 PCIe 4.0x4 NVMe	RTL8111K: 1x 1GbE RJ-45 Ethernet
12LN	1x 8GB SODIMM DDR4-3200	1x 1000GB SSD M.2 2280 PCIe 4.0x4 NVMe	RTL8111K: 1x 1GbE RJ-45 Ethernet Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.2
12LM	1x 8GB SODIMM DDR4-3200	1x 512GB SSD M.2 2280 PCIe 4.0x4 NVMe	RTL8111K: 1x 1GbE RJ-45 Ethernet Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.2
12LM	1x 8GB SODIMM DDR4-3200	1x 512GB SSD M.2 2280 PCIe 4.0x4 NVMe	RTL8111K: 1x 1GbE RJ-45 Ethernet
12LN	1x 8GB SODIMM DDR4-3200	1x 512GB SSD M.2 2280 PCIe 4.0x4 NVMe	RTL8111K: 1x 1GbE RJ-45 Ethernet Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.2
12LN	1x 8GB SODIMM DDR4-3200	1x 512GB SSD M.2 2280 PCIe 4.0x4 NVMe	RTL8111K: 1x 1GbE RJ-45 Ethernet
12LN	1x 8GB SODIMM DDR4-3200	1x 512GB SSD M.2 2280 PCIe 4.0x4 NVMe	RTL8111K: 1x 1GbE RJ-45 Ethernet Realtek RTL8852BE M.2 PCIe Wi-Fi 6 + BT 5.2
12LM	1x 8GB SODIMM DDR4-3200	1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe	RTL8111K: 1x 1GbE RJ-45 Ethernet Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.2
12LM	1x 8GB SODIMM DDR4-3200	1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe	RTL8111K: 1x 1GbE RJ-45 Ethernet
12LN	1x 8GB SODIMM DDR4-3200	1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe	RTL8111K: 1x 1GbE RJ-45 Ethernet Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.2
12LN	1x 8GB SODIMM DDR4-3200	1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe	RTL8111K: 1x 1GbE RJ-45 Ethernet
12LM	1x 8GB SODIMM DDR4-3200	1x 128GB SSD M.2 2242 PCIe 3.0x4 NVMe	RTL8111K: 1x 1GbE RJ-45 Ethernet Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.2
