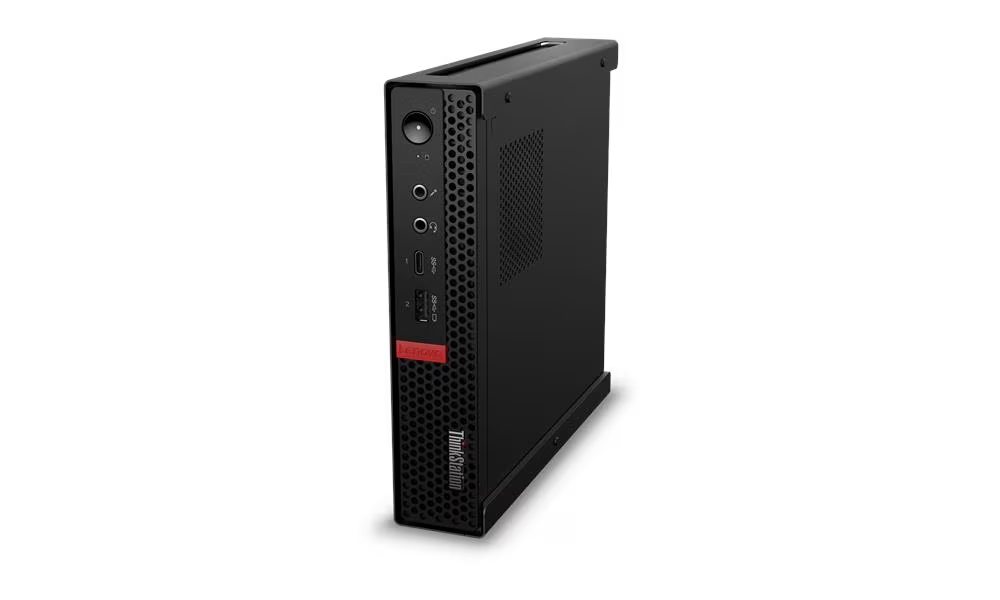

ThinkStation P330 Tiny 2019 Intel i3-9300

CPU

Cores: 4
Threads: 4
Base freq: 3.7 GHz
Max freq: 4.3 GHz
Architecture: Coffee Lake-S
Year: 2019
Geekbench single: 1,498
Geekbench multi: 4,025
Process: 14 nm
Cache: 8 MB
Rating: 43.7%
Rank: 117th out of 206
TDP: 62 W
Graphics: Intel® UHD Graphics 630
Memory CPU memory maximum from Intel. Use the RAM card and factory max specs to verify platform-supported capacity.: DDR4-2400 / 64 GB / 2 channels
PCIe: PCIe 3.0 / 16 lanes / Up to 1x16, 2x8, 1x8+2x4

Layout: 2x M.2 NVMe + 1x SATA 2.5"
Factory: 1128GB: 1x 128GB M.2 NVMe SSD + 1x 1000GB 3.5" HDD 5400rpm

1000GB: 1x 1000GB 3.5" HDD 7200rpm

Rear: 2x USB-A 3.1 Gen 1

2x USB-A 3.1 Gen 2

1x HDMI

1x DisplayPort

1x Ethernet RJ-45
Front: 1x USB-A 3.1 Gen 1 (Always On; fast charge)

1x USB-C 3.1 Gen 1

1x Headphone/microphone combo (3.5mm)

1x Microphone (3.5mm)
Optional rear: Optional port 1: 1x VGA / 1x DisplayPort / 1x HDMI / 1x Serial / 1x USB-C 3.1 Gen 1 (DisplayPort Alt Mode) / Optional port 2: 1x Serial / 2x USB-C 3.1 Gen 1 (via expansion card) / 4x Serial (via expansion card; via PCIe x1) / 4x Ethernet RJ-45

Integrated NIC: I219-LM: 1x 1GbE RJ-45 Ethernet
Compatible network adapters: I350-T4: PCIe 4x 1GbE RJ-45 Ethernet

Intel 9560: M.2 PCIe Wi-Fi 5 + BT 5.1
Factory network adapters: Intel 8265: M.2 PCIe Wi-Fi 5 + BT 4.2

Actual Lenovo model codes found with this CPU, grouped by the RAM, storage, and network options they shipped with.

Code	RAM	M.2 SSD Drive	Internal Disk Drive	Network
30CE	1x 8GB SO-DIMM DDR4-2666 Non-ECC	1x 128GB SSD M.2 PCIe NVMe	1x 1000GB HDD 5400rpm 3.5" SATA6Gb/s	I219-LM: 1x 1GbE RJ-45 Ethernet Intel 8265 M.2 PCIe Wi-Fi 5 + BT 4.2
30CE	1x 8GB SO-DIMM DDR4-2666 Non-ECC	-	1x 1000GB HDD 7200rpm 3.5" SATA6Gb/s	I219-LM: 1x 1GbE RJ-45 Ethernet
30CE	1x 8GB SO-DIMM DDR4-2666 Non-ECC	-	1x 1000GB HDD 7200rpm 3.5" SATA6Gb/s	I219-LM: 1x 1GbE RJ-45 Ethernet Intel 8265 M.2 PCIe Wi-Fi 5 + BT 4.2
