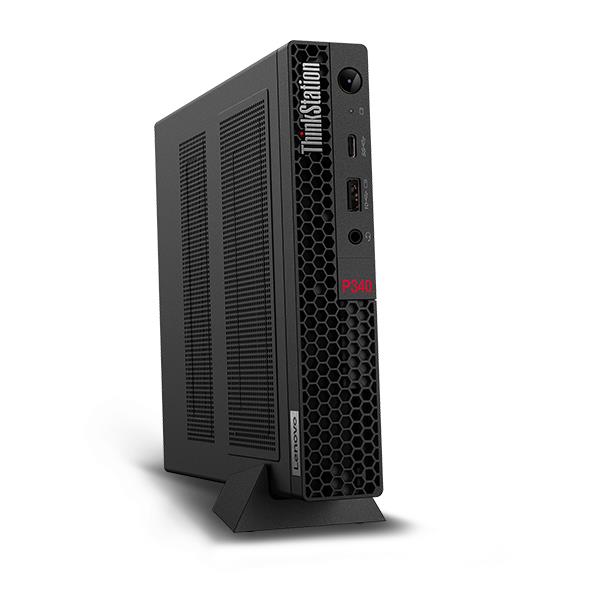

ThinkStation P340 Tiny 2020 Intel i3-10100

CPU

Cores: 4
Threads: 8
Base freq: 3.6 GHz
Max freq: 4.3 GHz
Architecture: Comet Lake-S
Year: 2020
Geekbench single: 1,432
Geekbench multi: 4,205
Process: 14 nm
Cache: 6 MB
Rating: 45.1%
Rank: 114th out of 206
TDP: 65 W
Graphics: Intel® UHD Graphics 630
Memory CPU memory maximum from Intel. Use the RAM card and factory max specs to verify platform-supported capacity.: DDR4-2666 / 128 GB / 2 channels
PCIe: PCIe 3.0 / 16 lanes / Up to 1x16, 2x8, 1x8+2x4

Rear: 1x HDMI

1x DisplayPort

2x USB-A 3.2 Gen 1 (Smart Power On; one port only)

2x USB-A 3.2 Gen 2

1x Ethernet RJ-45
Front: 1x USB-A 3.2 Gen 2 (Always On; fast charge)

1x USB-C 3.2 Gen 1

1x Headphone/microphone combo (3.5mm)
Optional rear: Optional port 1: 1x VGA / 1x DisplayPort / 1x HDMI / 1x Serial / 1x USB-C 3.2 Gen 1 (DisplayPort Alt Mode) / Optional port 2: 1x Serial / 2x USB-A 3.2 Gen 1 / 1x USB-C Thunderbolt 3 / 4x Ethernet RJ-45

Integrated NIC: I219-LM: 1x 1GbE RJ-45 Ethernet
Compatible network adapters: I350-T4: PCIe 4x 1GbE RJ-45 Ethernet

Intel AX201: Wi-Fi 6 + BT 5.1

Realtek RTL8822CE: Wi-Fi 5 + BT 5.0
Factory network adapters: Intel 9560: Wi-Fi 5 + BT 5.1

Actual Lenovo model codes found with this CPU, grouped by the RAM, storage, and network options they shipped with.

Code	RAM	M.2 SSD Drive	Network
30DE	1x 8GB SO-DIMM DDR4-2933 Non-ECC	1x 256GB SSD M.2 2280 PCIe NVMe	I219-LM: 1x 1GbE RJ-45 Ethernet Intel 9560 Wi-Fi 5 + BT 5.1
30DF	1x 8GB SO-DIMM DDR4-2933 Non-ECC	1x 256GB SSD M.2 2280 PCIe NVMe	I219-LM: 1x 1GbE RJ-45 Ethernet Intel 9560 Wi-Fi 5 + BT 5.1
30DE	1x 4GB SO-DIMM DDR4-2933 Non-ECC	1x 256GB SSD M.2 2280 PCIe NVMe	I219-LM: 1x 1GbE RJ-45 Ethernet
30DF	1x 4GB SO-DIMM DDR4-2933 Non-ECC	1x 256GB SSD M.2 2280 PCIe NVMe	I219-LM: 1x 1GbE RJ-45 Ethernet
